Structured Packings
Critical distillation applications require higher mass transfer area with minimum pressure drop. Limitations of Random Packing resulted in development of various types of Structured Packing offering surface areas as high as 750m2/m3. Structured Packing are manufactured from various materials of thin gauge textured surface with special corrugations and assembled in a manner such that the liquid flows uniformly though the cross section of the bed with minimum resistance to gas. The corrugations are either at 45° to the horizontal axis or 60° to the horizontal axis. They are accordingly referred to as type ‘Y’ or type ‘X’.

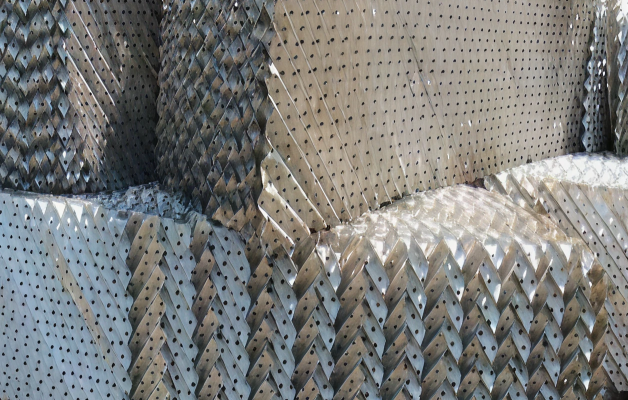

M-PAK Structured Packing
M-PAK Structured Packing has all the desirable characteristics like predictable throughput, low pressure drop, good efficiency and flexibility which plays vital role in separations. M-Pak Structured Packings are available in two different inclination angles, i.e. Type “X” and Type “Y”.

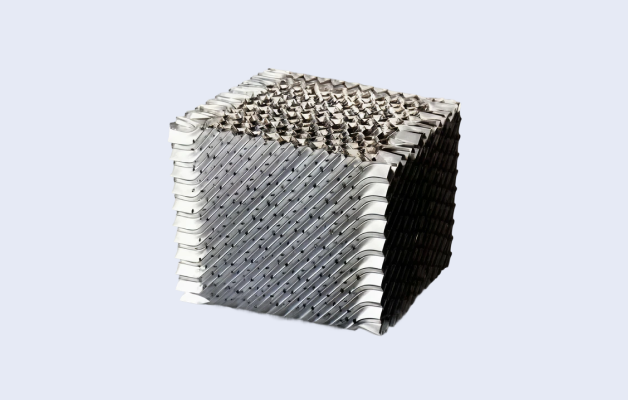

M-PAK High Capacity Structured Packing
MTPI’s high capacity structured packing, has a unique texture to provide an excellent liquid spread & thus lateral distribution. Owing to it’s fluid dynamic curved shape, our high capacity structured packing smoothens the gas passage and minimizes localized hold-up, thus compounding the advantage. High capacity packing is available in sizes M-Pak 252Y, M-Pak 452Y & M-Pak 752Y.

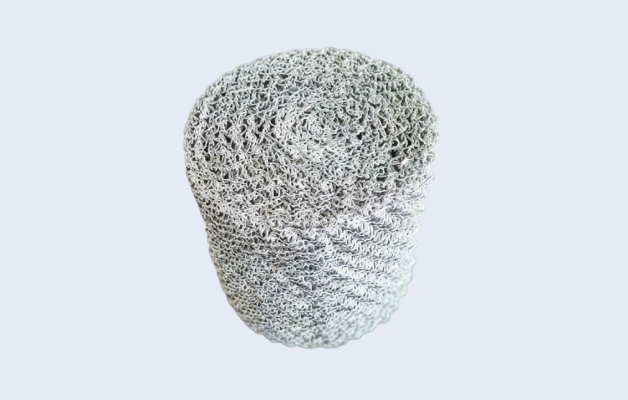

M-PAK Wire Gauze Structured Packing
M-PAK Wire Gauze Packing has enhanced self-wetting characteristics; as the fiber is woven from single diameter wires. It is available in three models MiBX-402 having 500m2/m3 specific surface area and MiCY-403 having 750m2/m3 and MiFX-404 having specific surface area 2000 m2/m3.

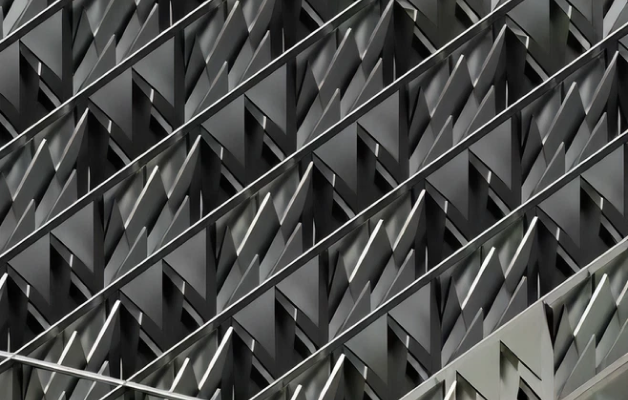

MTPI Directional Grid Packing
Grid Packing are recommended for applications with fouling, choking and solid contents. The Grid Packing has robust mechanical structure, fabricated in modules for ease of installation and cleaning. These packing provide lesser pressure drop even in fouling services, due to it’s unique directional design.
